VEMI45AA-HNH-GS08

VEMI45AA-HNH-GS08

Part Number
VEMI45AA-HNH-GS08
Manufacturer Vishay General Semiconductor – Diodes Division
Other Part Numbers
751-1420-2-ND
751-1420-1-ND
751-1420-6-ND
VEMI45AA-HNH-GS08GITR-ND
VEMI45AA-HNH-GS08GIDKR
751-1420-6
VEMI45AA-HNH-GS08GIDKR-ND
751-1420-2
VEMI45AA-HNH-GS08GICT-ND
VEMI45AA-HNH-GS08GITR
751-1420-1
VEMI45AA-HNH-GS08GICT
VEMI45AAHNHGS08
Description FILTER RC(PI) 100 OHM/36PF SMD
Detailed Description RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100Ohms, C = 36pF 4 A 8-UFDFN Exposed Pad
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Vishay General Semiconductor – Diodes Division
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

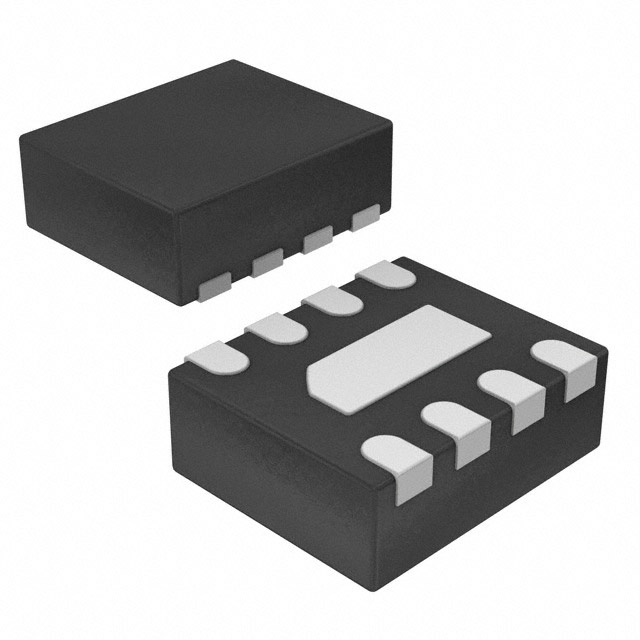

Package / Case 8-UFDFN Exposed Pad
Size / Dimension 0.067" L x 0.053" W (1.70mm x 1.35mm)
Mounting Type Surface Mount
Type Low Pass
Operating Temperature -40°C ~ 125°C
Values R = 100Ohms, C = 36pF
Height 0.024" (0.60mm)
Filter Order 2nd
Applications Data Lines for Mobile Devices
Technology RC (Pi)
Center / Cutoff Frequency 100MHz (Cutoff)
Resistance - Channel (Ohms) 100
ESD Protection Yes
Number of Channels 4
Current 4 A

Documents & Media

RESOURCE TYPE LINK
Datasheets VEMI45AA-HNH-GS08
Product Drawings VEMI45AA-HNH-GS08 Schematic

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8548.00.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 5631

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
Cut Tape (CT) 1 $0.39 $0.39
Total Amount: $0.39

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
3,000 $0.19 $570.00
6,000 $0.18 $1,080.00
15,000 $0.17 $2,550.00
30,000 $0.16 $4,800.00

Cut Tape (CT)

QUANTITY UNIT PRICE EXT PRICE
1 $0.39 $0.39
10 $0.38 $3.80
25 $0.36 $9.00
50 $0.35 $17.50
100 $0.33 $33.00
250 $0.28 $70.00
500 $0.22 $110.00
1,000 $0.21 $210.00
