VEMI85AB-HGK-GS08

VEMI85AB-HGK-GS08

Part Number
VEMI85AB-HGK-GS08
Manufacturer Vishay General Semiconductor – Diodes Division
Other Part Numbers
112-VEMI85AB-HGK-GS08TR-ND
112-VEMI85AB-HGK-GS08CT-ND
112-VEMI85AB-HGK-GS08DKR-ND
751-1456-6
112-VEMI85AB-HGK-GS08DKR
751-1456-2
751-1456-2-ND
751-1456-1
751-1456-1-ND
VEMI85ABHGKGS08
112-VEMI85AB-HGK-GS08CT
112-VEMI85AB-HGK-GS08TR
751-1456-6-ND
Description FILTER RC(PI) 100 OHM/24PF SMD
Detailed Description RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100Ohms, C = 24pF 4 A 16-UFDFN Exposed Pad
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Vishay General Semiconductor – Diodes Division
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

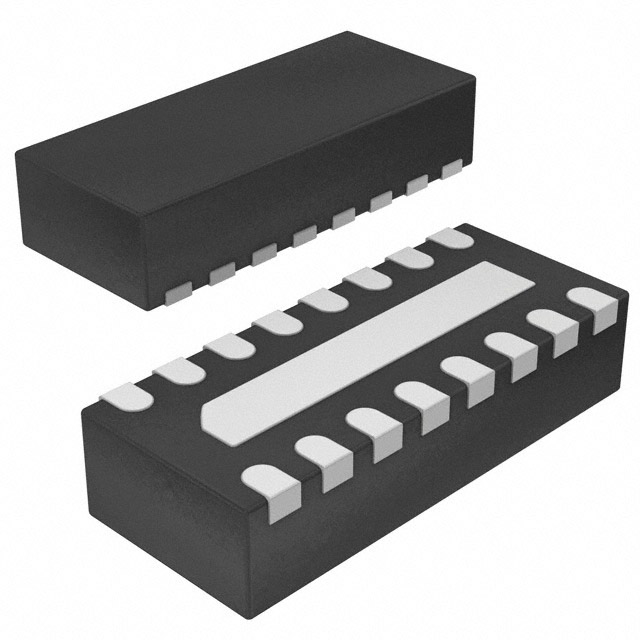

Package / Case 16-UFDFN Exposed Pad
Size / Dimension 0.130" L x 0.053" W (3.30mm x 1.35mm)
Mounting Type Surface Mount
Type Low Pass
Operating Temperature -40°C ~ 125°C
Values R = 100Ohms, C = 24pF
Height 0.024" (0.60mm)
Filter Order 2nd
Applications Data Lines for Mobile Devices
Technology RC (Pi)
Center / Cutoff Frequency 130MHz (Cutoff)
Resistance - Channel (Ohms) 100
ESD Protection Yes
Number of Channels 8
Current 4 A

Documents & Media

RESOURCE TYPE LINK
Datasheets VEMI85AB-HGK-GS08
Product Drawings VEMI86 Series Schematic

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8548.00.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 10785

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
Cut Tape (CT) 1 $0.56 $0.56
Total Amount: $0.56

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
3,000 $0.27 $810.00
6,000 $0.25 $1,500.00
15,000 $0.24 $3,600.00
30,000 $0.24 $7,200.00

Cut Tape (CT)

QUANTITY UNIT PRICE EXT PRICE
1 $0.56 $0.56
10 $0.55 $5.50
25 $0.45 $11.25
50 $0.40 $20.00
100 $0.36 $36.00
250 $0.35 $87.50
500 $0.31 $155.00
1,000 $0.29 $290.00
