1.5KE27AHE3_A/C

1.5KE27AHE3_A/C

Part Number	1.5KE27AHE3_A/C
Manufacturer	Vishay General Semiconductor – Diodes Division
Other Part Numbers	112-1.5KE27AHE3_A/CTR-ND 112-1.5KE27AHE3_A/CCT-ND 1.5KE27AHE3/54-ND 1.5KE27AHE3/54 112-1.5KE27AHE3_A/CDKR-ND 112-1.5KE27AHE3_A/CCT 112-1.5KE27AHE3_A/CTR 112-1.5KE27AHE3_A/CDKR 1.5KE27AHE3_A/C-ND
Description	TVS DIODE 23.1VWM 37.5VC 1.5KE
Detailed Description	37.5V Clamp 40A Ipp Tvs Diode Through Hole 1.5KE
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Vishay General Semiconductor – Diodes Division
Series		TransZorb®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		DO-201AA, DO-27, Axial
Mounting Type		Through Hole
Type		Zener
Operating Temperature		-55°C ~ 175°C (TJ)
Current - Peak Pulse (10/1000µs)		40A
Voltage - Reverse Standoff (Typ)		23.1V
Supplier Device Package		1.5KE
Unidirectional Channels		1
Voltage - Breakdown (Min)		25.7V
Voltage - Clamping (Max) @ Ipp		37.5V
Power - Peak Pulse		1500W (1.5kW)
Power Line Protection		No
Grade		Automotive
Qualification		AEC-Q101

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1.5KE27AHE3_A/C
PCN Assembly/Origin		Mult Devs Location 25/Oct/2022
PCN Part Number		TransZorb TVS 17/Sep/2016

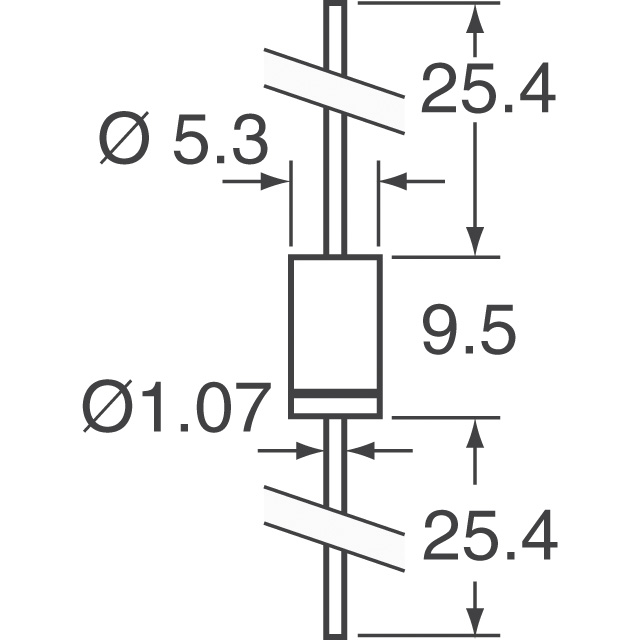

Product Drawings		1.5KE Series Axial Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 841

Can ship immediately.
